Provisioning and trust anchors

This chapter is for tenant administrators who bring fleets of devices onto DeviceChain without creating and configuring every device by hand. It covers three things under Connect in the sidebar and on the device page:

  • Provisioning Profiles: the shared entry point a fleet registers itself through.
  • Trust Anchors: the certificate authorities your tenant trusts to vouch for device certificates.
  • Certificate credentials: a device that signs in with a client certificate instead of a token or password.

Both pages need the device:read permission to open and device:write to change anything. A member limited to some of the tenant's customers or groups does not see them.

What ships today

Certificate authentication is arriving in stages. In the console you can create trust anchors, add certificate credentials to devices and create certificate provisioning profiles. A device whose certificate is registered as a credential can connect to the MQTT broker with it, and a device whose certificate chains to a certificate profile's trust anchor registers itself on its first connect. Adopting a device you created ahead of time and renewing a certificate are not available yet. See What works today with certificates.

Provisioning profiles​

A provisioning profile lets a fleet register itself. Every unit comes off the line with the same key and secret, and introduces itself the first time it powers on; you do not create each device first. This chapter is the console side. How the firmware makes the request, and what it can be answered, is in Device self-registration.

Open Connect → Provisioning Profiles. The list shows each profile's name, token, device type and strategy, how many devices it has registered (against its limit, if it has one), and its status, with badges for a profile that is Disabled, Expired, or marked Rotate required.

Creating a profile​

Choose New provisioning profile, then fill in:

  • Name and Description, as for any other entity.
  • Authenticates by: Shared secret, or Certificate (see Certificate provisioning profiles). It is chosen when you create the profile.
  • Provision key (shared secret only): the public name devices register under. It is unique within the tenant and is stored exactly as typed. It is not secret.
  • Device type: the type of every device the profile creates, and the only type it will adopt.
  • Strategy: Allow new devices creates a device the platform has never heard of, and also adopts one you expected for this profile. Only pre-registered devices registers only devices you created beforehand and expected for this profile; an unknown device is refused.
  • Device limit: the most devices this profile may register. Leave it empty for no limit. Lowering it only refuses further registrations; it removes nothing.
  • Expires: after this time the profile refuses new registrations. Devices already registered are unaffected. Leave it empty for never.
  • Accepting registrations: turn it off to refuse new registrations at once.

Choose Create provisioning profile. For a shared-secret profile the next dialog is Copy the provision secret now. It shows the provision key and the secret the server generated. The secret is shown once. The platform keeps only a one-way digest, so it cannot show the secret again; if you lose it, rotate it. Flash the key and secret into the fleet's firmware.

Following a profile​

Select a profile to open it. The Registration panel counts the Registered devices (those holding a credential this profile issued, revoked ones included) and the Devices expected for this profile (devices created for it that have not necessarily registered yet). View devices opens the device list filtered to either set.

From the profile page you can also:

  • Rotate secret: replaces the secret. The old one stops working at once, with no overlap, and the new one is shown once. Devices already registered keep their credentials. A profile whose secret was chosen before the platform generated secrets is marked Rotate required and refuses every registration until you rotate it.
  • Revoke devices: disables the credentials of the devices registered through the profile and ends their live connections. They are refused until you reset each one's provisioning. Do this, and rotate the secret, if the secret may have leaked.
  • Delete: refused while any device still holds a credential the profile issued. Revoke the devices first, then reset their provisioning or delete them.

Expecting a device​

A profile adopts an existing device only when you expected it for that profile. Set Expected provisioning profile when you create the device, in the device form; the choice lists the profiles for the device's type. It can only be set when the device is created. The reasons, and the CSV and API equivalents, are in Earmarking.

A device's page shows how it came onto the platform and offers Reset provisioning. Use it to let a revoked device, or one that lost its credential, register again.

Trust anchors​

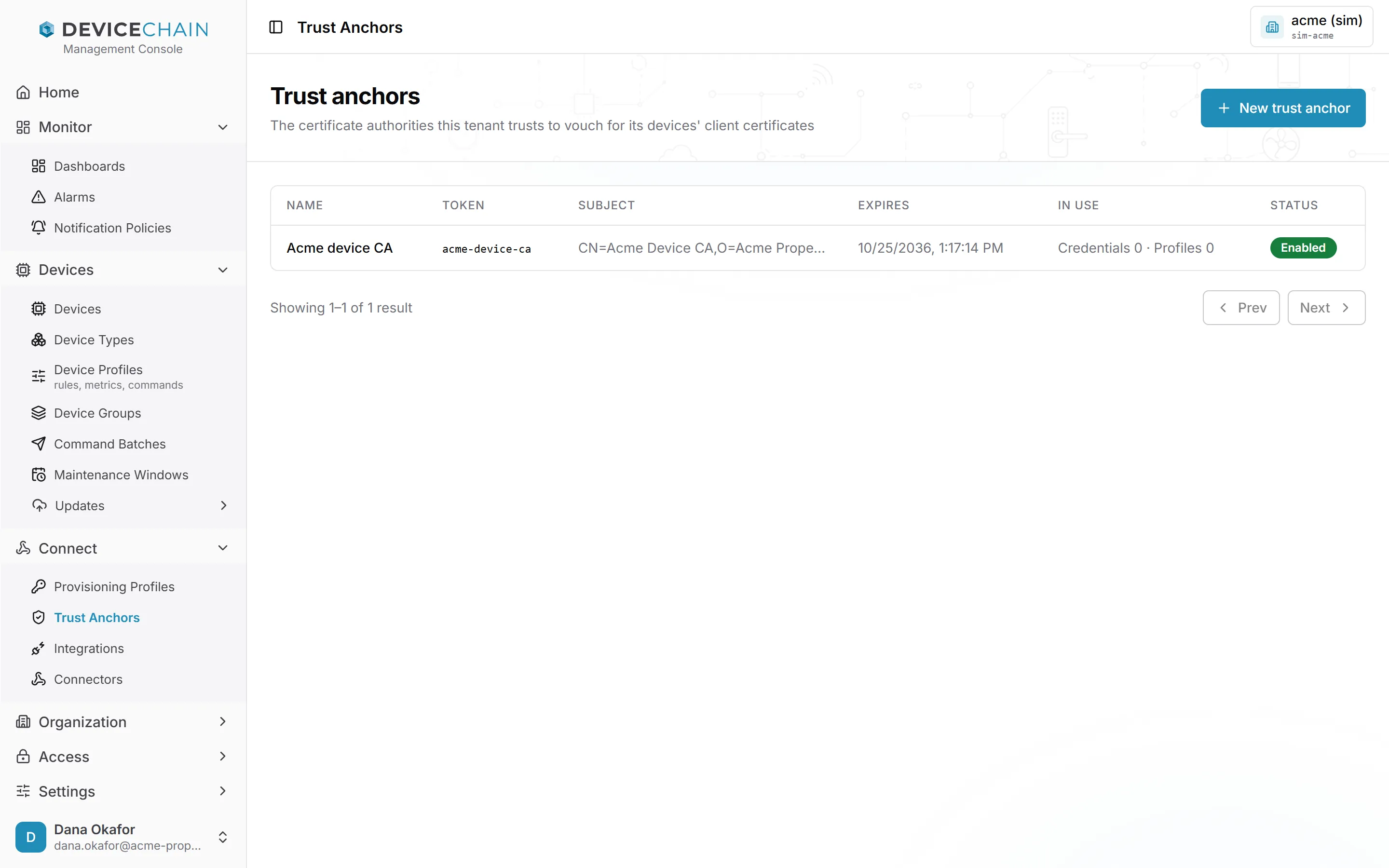

A trust anchor is a certificate authority (CA) certificate. A device certificate is accepted only if its chain leads to a trust anchor you have registered. Open Connect → Trust Anchors. The list shows each anchor's subject, expiry and how many credentials and profiles use it, with badges for an anchor that is Disabled, Expired or Expires in N d.

Adding an anchor​

Choose New trust anchor, give it a token and a name, and supply the CA certificate (PEM): paste it, or choose the file.

  • Supply exactly one certificate. It can be a root, or an intermediate if you want to trust one sub-CA only.
  • Supply the certificate only, never a private key. The form refuses text that contains one.
  • A certificate cannot be changed afterwards. Another CA is another anchor.

A tenant may hold up to 32 trust anchors. If the server refuses the certificate, the form says why in a sentence, for example that it is not a certificate.

Looking at, disabling and deleting an anchor​

Select an anchor to see its SHA-256 fingerprint, subject, issuer, the dates it is valid between, and an In use panel with the number of credentials and provisioning profiles that name it.

  • Disable stops trusting the anchor. The console warns you first: every device whose certificate chains to it stops authenticating and is disconnected now, and cannot reconnect until you enable the anchor again.
  • Enable reverses that.
  • Delete is refused while a credential or a profile still names the anchor. The console explains the counts. Remove or re-point those first, or disable the anchor to stop trusting it.

Certificate credentials on a device​

A device can hold a credential that is a certificate. Open the device, then its Credentials tab (see Credentials). Under Type choose X509_CERTIFICATE and:

  1. Paste the Device certificate (PEM). It is the device's own certificate, optionally followed by the intermediate certificates that link it to the trust anchor. Certificates only, never a private key.
  2. Select the Trust anchor the chain must reach. Only anchors that are enabled and not expired are offered.
  3. Choose Add certificate credential.

The platform verifies the chain now, and refuses a certificate whose chain cannot authenticate. It then computes the certificate's SHA-256 pin, which becomes the credential's id, and shows it back as Certificate pinned with the common name and the date until which it is valid. The pin is public; it identifies the certificate and is not a secret.

Each row on the tab shows the common name, the pin, the anchor and the earliest expiry across the certificate and its chain, flagged when it is near or past. A device can hold at most three certificate credentials; the console says so before you try a fourth. A certificate credential with no trust anchor cannot authenticate; remove it and add it again.

Certificate provisioning profiles​

A profile whose Authenticates by is Certificate names a trust anchor instead of holding a secret. There is nothing to issue, show or rotate. The device's token is derived from its certificate: pv- followed by the certificate's common name, which is the device's external id.

That rule shows where you expect a device for such a profile. In the device form, set the External id to the certificate's common name and leave the token empty, or set the token to the derived value. A device expected for a certificate profile cannot change its external id afterwards. A tenant may hold up to eight certificate profiles.

What works today with certificates​

  • A registered certificate connects. A device connects to the MQTT broker over TLS and presents its client certificate. Its MQTT username is {tenant}:@x509 with no password, and its client id is the one the platform gives that device. The platform looks up the certificate's pin, checks the chain against the credential's trust anchor at every connect, and ends the session no later than the earliest expiry in the chain. Disabling a credential, an anchor or the device refuses the very next connect.
  • Registration on first connect works. A certificate that no credential pins, and that chains to the trust anchor of an enabled certificate profile under the Allow new devices strategy, creates the device and pins the certificate to it. The device's token is derived from its common name, so its client id is computed from the certificate. If a certificate chains to the anchors of more than one profile, the profile whose anchor is closest to the certificate wins, and a tie is refused. The steps and the client id rule are in Connecting with a certificate.
  • Adopting and renewing are not available yet. A device you created ahead of time and expected for a certificate profile cannot register by certificate, nor can one whose provisioning was reset; give it a certificate credential yourself. A device that already holds a certificate and presents a different one is refused until renewal ships. Add the new certificate as a credential before the old one expires.
  • It needs the DeviceChain broker. The default broker asks each device for a client certificate. An instance rolled back to the upstream broker image keeps token and password devices working and refuses certificate devices. See Releases and upgrades.
  • Watching it. The DeviceX509ChainFailuresSustained and related alerts are described in Observability.
